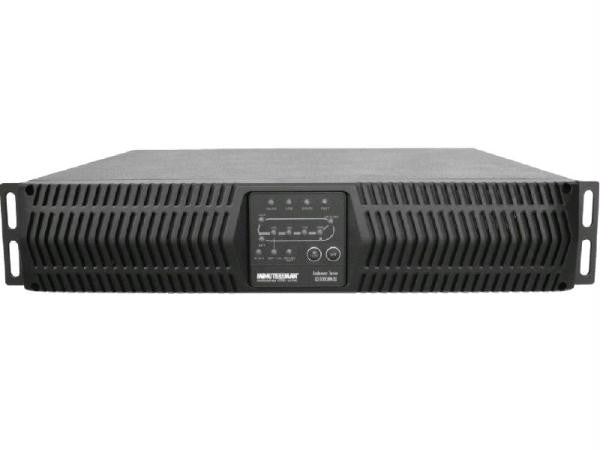

ED3000RM2U -- UPS ONLINE 3KVA 2U RACK-TO
The Minuteman Endeavor Series on-line uninterruptible power supplybines double-conversion technology with industry-leading features in a versatile case design that allows the units to be installed in many different formats and environments. Offering larger capacities in smaller UPS VA sizes reduces the overall cost of the UPS solution for a specific load requirement. All units in the Endeavor Series produce an electrical signal that does not vary from nominal voltage by more than 2%. Tightly regulating the output voltage increases the quality of power to connected equipment adding to its life expectancy, which lowers the total cost of ownership to users.
Primary Information
Power Device Type : UPS
UPS Technology : Online
Voltage Provided : AC 120 V
Voltage Required : AC 120 V
Circuit Protection : Circuit breaker
Power Device / Form Factor : External
Features : Wall mountable , LED indicators, noise filtering
Dimensions&Miscellaneous
Width : 17.30 Inch
Depth : 24.00 Inch
Height : 3.50 Inch
Power
Power Provided (W) : 2.1 KW
Power Provided (VA) : 3000 VA
Surge Suppression : Standard
Battery
Battery Installed Qty : 6
Battery / Run Time : 5 min at full load
Connection
Interfaces & Connections : 1 x management - RS-232 - 9 pin D-Sub (DB-9) 1 x management - EPO (emergency power off) - RJ-11 1 x management - USB - 4 pin USB Type B
Input Connector(s) : 1 x power NEMA 5-30
Output Connector(s) : 6 x power NEMA 5-15/20
UNSPSC Code
UNSPSC Code : 39121011
